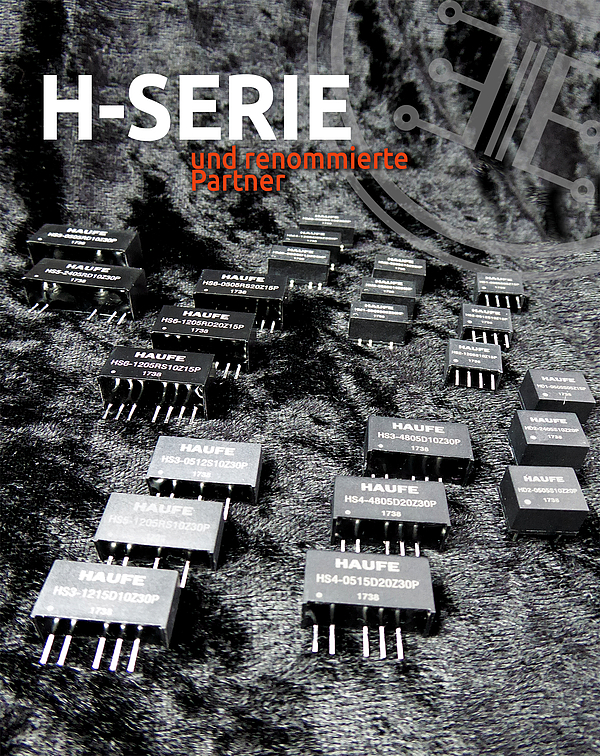

| Series Name (Click Link to download Datasheet) | Input | Output | Output Type | Power (Watt) | Operating temperature (ºC) *** | Isolation | Bauform |
|---|---|---|---|---|---|---|---|
| HS1*** | 3.3/5/12 | 3.3/5/9/12/15 | S | 0.50 | -40 / – / 105 | 3kV | SIP4 |
| HD1 ** | 3.3/5/12 | 3.3/5/9/12/15 | S | 0.50 | -40 / – / 105 | 3kV | DIP8 |
| HS2 ** | 3.3/5/12/15/24/48 | 3.3/5/9/12/15/24 | S | 1,0 | -40 / – / 105 | 1.5kV | SIP7 |
| HD2 ** | 3.3/5/12/15/24/48 | 3.3/5/9/12/15/24 | S | 1,0 | -40 / – / 105 | 2.0kV | DIP14 |
| HS2-single ** | 3.3/5/12/15/24 | 3.3/5/9/12/15/24 | S | 1,0 | -40 / – / 105 | 3kV | SIP7 |
| HS3-dual ** | 5/12/15/24/48 | ±5/±9/±12/±15/±24 | D | 1,0 | -40 / – / 105 | 3kV | SIP7 |
| HD3-single ** | 3.3/5/12/15/24/48 | 3.3/5/9/12/15/24 | S | 1,0 | -40 / – / 105 | 3kV | |
| HD3-dual ** | 5/15/15/24/48 | ±5/±9/±12/±15/±24 | D | 1,0 | -40 / – / 105 | 3kV | SIP7 |
| HS4-single ** | 3.3/5/12/15/24/48 | 3.3/5/9/12/15/24 | S | 2,0 | -40 / – / 105 | 3kV | SIP7 |
| HS4-dual ** | 5/12/15/24/48 | ±5/±9/±12/±15/±24 | D | 2,0 | -40 / – / 105 | 3kV | SIP7 |
| HD4-single ** | 3.3/5/12/24/48 | 3.3/5/9/12/15/24 | S | 2,0 | -40 / – / 105 | 3kV | DIP |
| HD4-dual ** | 5/15/15/24/48 | ±5/±9/±12/±15/±24 | D | 2,0 | -40 / – / 105 | 3kV | |
| HS5-single ** | 3,3/5/12/15/24 | 3,3/5/9/12/15/24 | SR | 1,0 | -40 / – / 105 | 3kV | SIP8 |
| HS5-dual | |||||||
| HS6-single | 4,5-9/18-36/36-72 | 5/9/12/15/24 | SR | 1,0 | -40 / – / 105 | 1,5kV | SIP8 |
| HS6-dual | 4,5-9/18-36/36-72 | ±5/±9/±12/±15/±24 | DR | 1,0 | -40 / – / 105 | 1,5kV | |
| HS7-single | 4,5-9/18-36/36-72 | 5/9/12/15/24 | SR | 2,0 | -40 / – / 105 | 1,5kV | SIP8 |
| HS7-dual | 4,5-9/18-36/36-72 | ±5/±9/±12/±15/±24 | DR | 2,0 | -40 / – / 105 | 1,5kV | SIP8 |
| HM1 ** | 3.3/5/12/15/24 | 3.3/5/9/12/15 | S | 0.50 | -40 / – / 105 | 3kV | DIP8 |
| HM2 ** | 3.3/5/12/15/24 | 3.3/5/9/12/15 | S | 1,0 | -40 / – / 105 | 3kV | DIP8 |
| HM3-dual ** | 3.3/5/12/15/24 | ±3.3/5/±9/±12/±15 | D | 1,0 | -40 / – / 105 | 3kV | DIP10 |
| HM3-single ** | 3.3/5/12/15/24 | 3.3/5/9/12/15 | S | 1,0 | -40 / – / 105 | 3kV | DIP10 |
| HM4-dual ** | 5/12/24/ | ±3.3/5/±9/±12/±15 | D | 1,0 | -40 / – / 105 | 3kV | DIP12 |
| HM4-single ** | 3.3/5/12/24 | 3.3/5/9/12/15 | S | 1,0 | -40 / – / 105 | 3kV | DIP12 |
| HM5-dual ** | 5/12/24/ | ±3.3/5/±9/±12/±15 | D | 1,0 | -40 / – / 105 | 3kV | DIP12 |
| HM5-single ** | 3.3/5/12/24 | 3.3/5/9/12/15 | S | 1,0 | -40 / – / 105 | 3kV | DIP12 |
| *** Derating if the temperature is >= 85ºC (Min. / Typ. / Max.) (ºC) ** continuous Short Circuit Protection | |||||||
| . | |||||||
| . | |||||||
